Higher Maths: Functions and Graphs

Course content

  • All Nat 5 functions work is assumed.
  • Identifying a function from a graph, or sketching a function after a transformation of the form \(k\tiny\ \normalsize f(x),\) \(f(kx),\) \(f(x)+k,\) \(f(x+k)\) or a combination of these
  • Sketching the inverse of a logarithmic or an exponential function
  • Knowing the meaning and use of the terms domain and range
  • Determining a composite function given \(f(x)\) and \(g(x),\) where \(f(x)\) and \(g(x)\) can be trigonometric, logarithmic, exponential or algebraic functions
  • Determining the inverse function \(f^{-1}(x)\) of given functions.

Textbook page references

Find a Higher Maths tutor

Do you need a tutor for Higher Maths?
Click here to find a tutor in your area.

×

Number sets

  • \(\mathbb N\) = natural numbers \(\small\{1,2,3,...\}\)
  • \(\mathbb W\) = whole numbers \(\small\{0,1,2,3,...\}\)
  • \(\mathbb Z\) = integers \(\small\{...,-2,-1,0,1,2,...\}\)
  • \(\mathbb Q\) = rational numbers \(\small \{\frac{m}{n} : m\in \mathbb Z ,n\in \mathbb N \} \)
  • \(\mathbb R\) = real numbers (rational and irrational)

Example 1 (non-calculator)

Function \(f\) is defined by \(f(x)=\large\frac{3x}{x^2-4x-5}\normalsize.\) What values of \(x\) cannot be in the domain of \(f\)?

Example 2 (non-calculator)

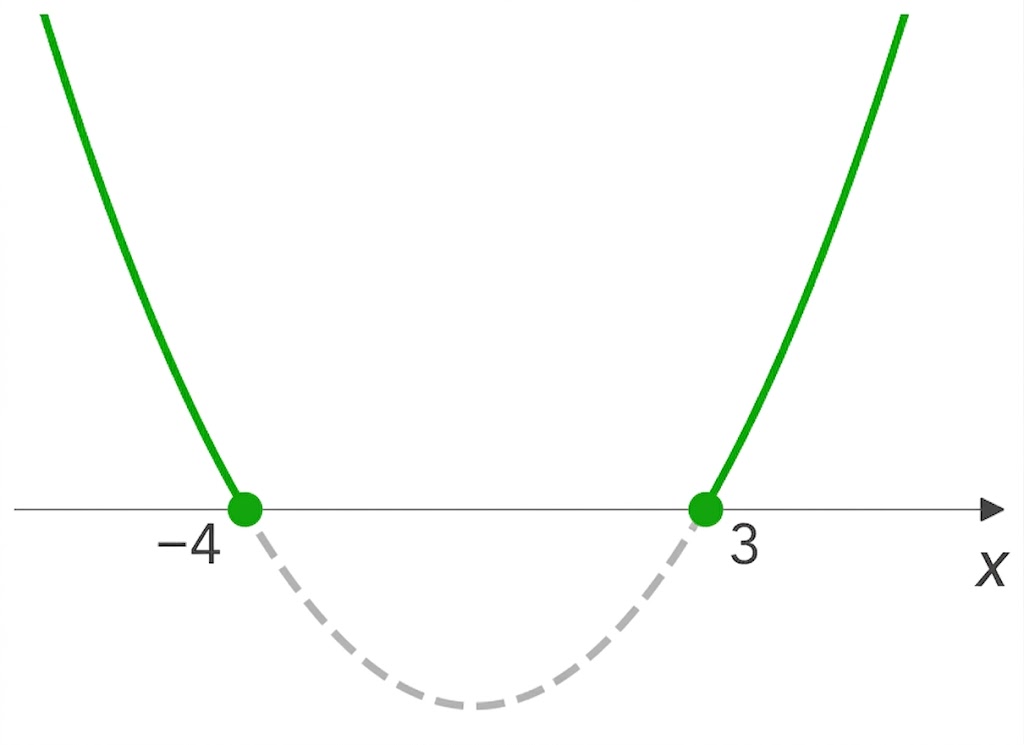

Function \(g\) is given by \(g(x)=\sqrt{x^2+x-12}.\) Write down the largest possible domain for \(g.\)

Example 3 (non-calculator)

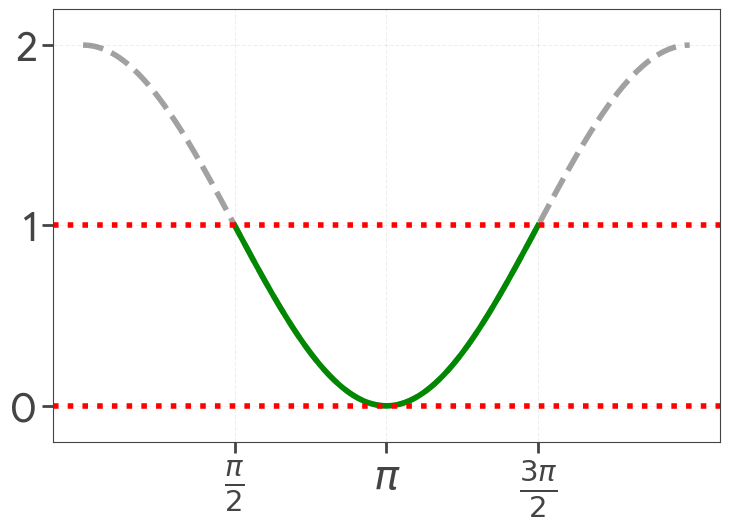

Function \(h\) is defined by \(h(x)=1+cos\,x\) on the domain \( \{x : x\in \mathbb R , \frac{\pi}{2} \leqslant x \leqslant \frac{3\pi}{2}\}. \) Identify the range of \(h.\)

Example 4 (non-calculator)

Functions \(f\) and \(g\) are defined on \(\mathbb R\) by \(f(x)=1-2x\) and \(g(x)=3x^2-5.\)
Find and simplify expressions for the composite functions:
(a)  \(f\left(g(x)\right)\)
(b)  \(g\left(f(x)\right)\)

Recommended student books

Zeta Maths: Higher Maths practice book
Heinemann: Higher Maths textbook

Example 5 (non-calculator)

Function \(f\) is given by \(f(x)=\large\frac{x\,-\,1}{x\,+\,1}\normalsize, x\neq-1.\)
Find and simplify an expression for \(f^{2}(x).\)

Example 6 (non-calculator)

Functions \(f\) and \(g\) are defined on \(\mathbb R\).
The inverse functions \(f^{-1}\) and \(g^{-1}\) both exist.
(a)  Given \(f(x)=3-2x,\) find \(f^{-1}(x).\)
(b)  Given \(g(4)=5,\) write down the value of \(g^{-1}(5).\)
(c)  Write down an expression for \(g(g^{-1}(x)).\)

Example 7 (non-calculator)

The graph of a function \(f\) has turning points at \((0,2)\) and \((3,-\!1)\small.\) State the coordinates of each of these turning points on the following graphs:
(a)  \(y=f(x\!-\!3)\)
(b)  \(y=2f(x)\)
(c)  \(y=-4f(x\!+\!2)\)
(d)  \(y=f(3x)-1\)
(e)  \(y=\frac{1}{2}f(x)+4\)

Recommended revision guides

How to Pass Higher Maths
BrightRED Higher Maths Study Guide

Example 8 (non-calculator)

SQA Higher Maths 2019 Paper 1 Q12

Functions \(f\) and \(g\) are defined by
• \(f(x)=\large\frac{1}{\sqrt{x}}\small,\) where \(x\gt 0\)
• \(g(x)=5-x\small,\) where \(x\in \mathbb R\small.\)
(a)  Determine an expression for \(f(g(x))\small.\)
(b)  State the range of values of \(x\) for which \(f(g(x))\) is undefined.

Example 9 (calculator)

SQA Higher Maths 2019 Paper 2 Q8

A function, \(f\small,\) is given by \(f(x)=\sqrt[\leftroot{-1}\uproot{6}\scriptstyle 3]{x}+8\small.\)
The domain of \(f\) is \(1\leqslant x\leqslant 1000\small,\normalsize\ x\in\mathbb R\small.\)
The inverse function, \(f^{-1}\small,\) exists.
(a)  Find \(f^{-1}\small.\)
(b)  State the domain of \(f^{-1}\small.\)

Example 10 (non-calculator)

SQA Higher Maths 2022 Paper 1 Q3

A function, \(h\small,\) is defined by \(h(x)=4+\large\frac{1}{3}\normalsize x\small,\) where \(x\in\mathbb R\small.\)
Find the inverse function, \(h^{-1}(x)\small.\)

Example 11 (calculator)

SQA Higher Maths 2023 Paper 2 Q6

A function \(f(x)\) is defined by \(f(x)=\large\frac{2}{x}\normalsize+3\small.\)
Find the inverse function, \(f^{-1}(x)\small.\)

Need a Higher Maths tutor?

Just use this handy little widget and our partner Bark.com will help you find one.

Maths.scot worksheet

Graph transformations worksheet
Answer sheet

Past paper questions

Domain and range:
2015 Paper 2 Q2 (with quadratics)
2019 Paper 1 Q12
2019 Paper 2 Q8
Composite functions:
2015 Paper 2 Q2 (with quadratics)
2016 Paper 1 Q12 (with quadratics)
2017 Paper 1 Q1
2018 P2 Q6 (with trigonometry)
2019 Paper 1 Q12
2021 Paper 1 Q6
2022 Paper 2 Q5(a)
2023 P1 Q13 (with trigonometry)
Inverse functions:
Specimen P1 Q15 (with quadratics)
2015 Paper 1 Q5
2016 Paper 1 Q6
2016 Paper 1 Q10 (with log graphs)
2017 Paper 1 Q6
2018 Paper 1 Q2
2019 Paper 2 Q8
2021 Paper 1 Q3
2021 Paper 1 Q17 (with logarithms)
2022 Paper 1 Q3
2023 Paper 1 Q9 (with logarithms)
2023 Paper 2 Q6
Graphs of related functions:
Spec. P2 Q7 (with differentiation)
2015 P1 Q4 (with trigonometry)
2015 Paper 1 Q13
2016 P1 Q15 (with polynomials)
2017 P1 Q14 (with trigonometry)
2017 P1 Q15 (with quadratics)
2018 P1 Q11 (with logarithms)
2019 Paper 1 Q10
2021 Paper 1 Q11
2022 Paper 1 Q10
2023 Paper 2 Q4
