National 5 Maths
Trigonometric Equations

 For textbooks and tutoring, we recommend:

Page sections

• Topic content
• Textbook page numbers
• Trig equations explained
• Worked examples
• Past paper questions
• Worksheets
• Notes and videos

Topic content

• Understand how sin, cos and tan are defined for angles from 0° to 360°
• Understand period and related angles
• Solve basic trigonometric equations.

Textbook page numbers

• Zeta National 5+ Maths pp.214-216
• TeeJay Maths Book N5 pp.196-203
• Leckie National 5 Maths pp.272-280

Buy our favourite textbook

Zeta National 5+ Maths
Clear and comprehensive.
Progressive exercises.
Includes answers.
Buy from Zeta Press

Related angles

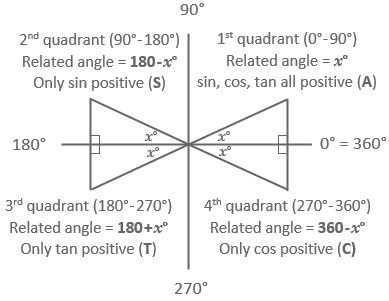

The trig functions sin, cos and tan can be defined for angles greater than 90° by thinking about this diagram:

The four quadrants contain congruent right-angled triangles with the acute angle \(a^\circ\) at the centre.

The actual angle is measured anticlockwise from the 0° line.

• 1st quadrant: The actual angle is \(a^\circ.\)
• 2nd quadrant: The actual angle is half a turn and then back \(a^\circ.\) So that's 180–\(a^\circ.\)
• 3rd quadrant: The actual angle is half a turn and then another \(a^\circ\). So that's 180+\(a^\circ.\)
• 4th quadrant: The actual angle is a full turn and then back \(a^\circ.\) So that's 360–\(a^\circ.\)

These four angles are what we call related.

Example 1:  \(a\) = 30°

Check this yourself on your calculator:

• sin 30° = \(1 \over 2\)
• sin (180–30)° = sin 150° = \(1 \over 2\)
• sin (180+30)° = sin 210° = \(-\frac{1}{2}\)
• sin (360–30)° = sin 330° = \(-\frac{1}{2}\)

Apart from the negatives, they're all equal. That's because these four angles are related.

Example 2:  \(a\) = 45°

Check this yourself on your calculator:

• cos 45° = \(\frac{\sqrt{2}}{2}\)
• cos (180–45)° = cos 135° = \(-\frac{\sqrt{2}}{2}\)
• cos (180+45)° = cos 225° = \(-\frac{\sqrt{2}}{2}\)
• cos (360–45)° = cos 315° = \(\frac{\sqrt{2}}{2}\)

Again, these are related angles, so they're equal apart from the negatives.

Example 3:  \(a\) = 60°

Check this yourself on your calculator:

• tan 60° = \(\sqrt{3}\)
• tan (180–60)° = tan 120° = \(-\sqrt{3}\)
• tan (180+60)° = tan 240° = \(\sqrt{3}\)
• tan (360–60)° = tan 300° = \(-\sqrt{3}\)

Same again: they're equal apart from the negatives, because they are related angles.

ASTC diagram

This is also called a CAST diagram, but we prefer ASTC as it keeps the letters in the correct quadrant order.

Remember it with one of these:

• All Sinners Take Care.
• All Students Take Calculus.
• Add Sugar To Coffee.
• A Smart Trig Class.
• All Stations To Central.

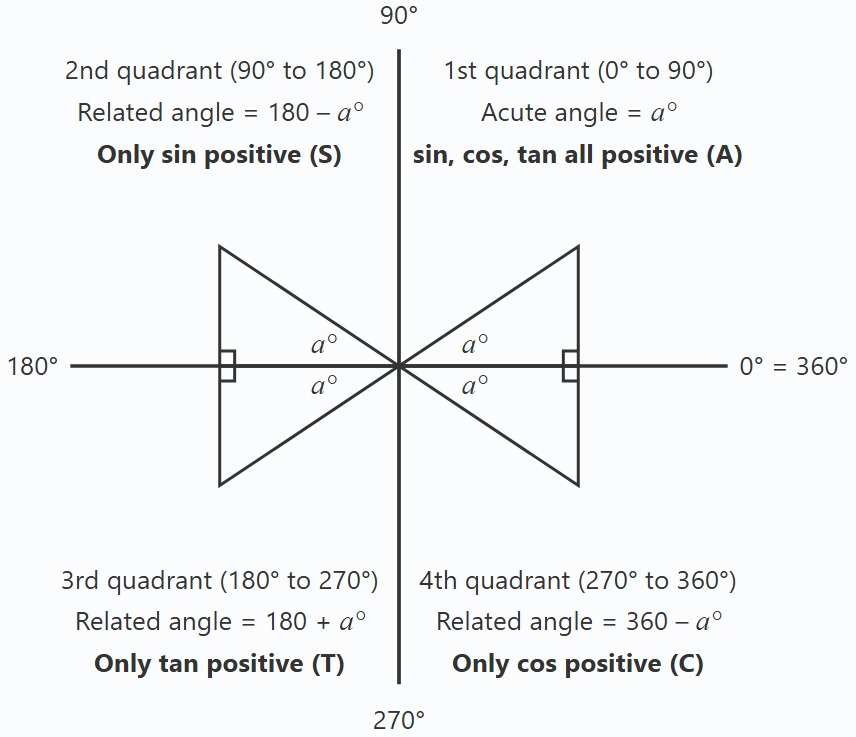

Here is a simpler version of the quadrant diagram:

If you want to understand why some of the values for related angles are positive and some are negative, that's easy. Just go back to your study of the basic trig graphs and take a look at when they are above or below the \(x\)-axis. Above is positive and below is negative – simple!

Trig equations

Trig equations have an infinity of solutions because the wave-like graphs of these functions repeat endlessly.

For this reason, Nat 5 exams ask for such equations to be solved within a given interval, often \(0 \leq x \lt 360.\)

When solving any trig equation, we recommend always finding the related acute angle. This means the 1st quadrant (0° to 90°) angle that is related to the solutions.

We will use the letter \(a\) for the related acute angle. It is important not to use \(x\) for this, as the acute angle is not always one of the solutions.

Once we know the related acute angle, we will use it to find the values of \(x\small.\)

Looking for an N5 Maths tutor?

Try our free, no-obligation tutor search tool.
Click here to find a tutor in your area.

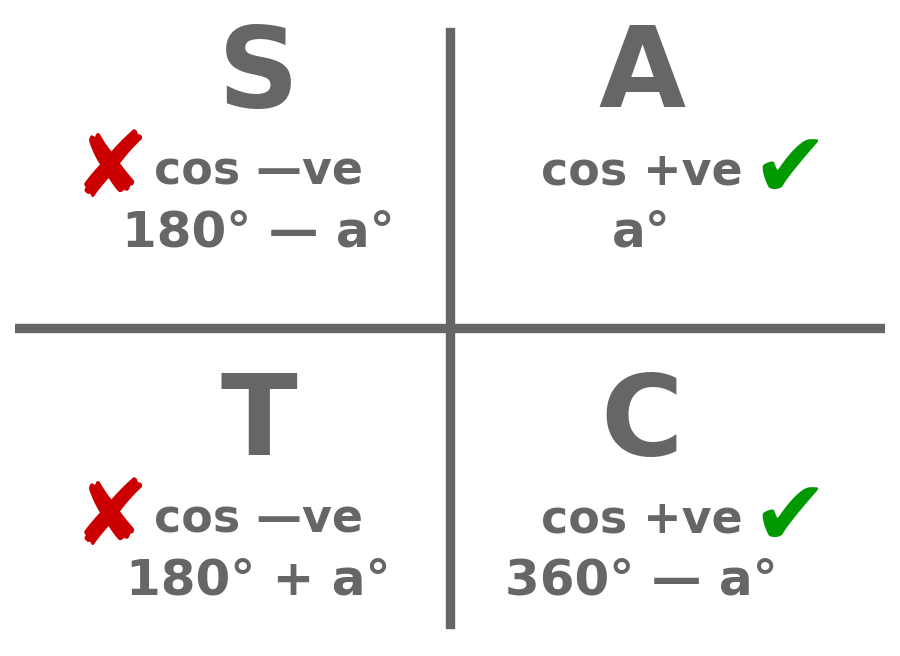

Example 1 (calculator)

Solve the equation \( cos\ x^\circ=0.5 \), for \(0 \leq x \lt 360.\)

Show solution

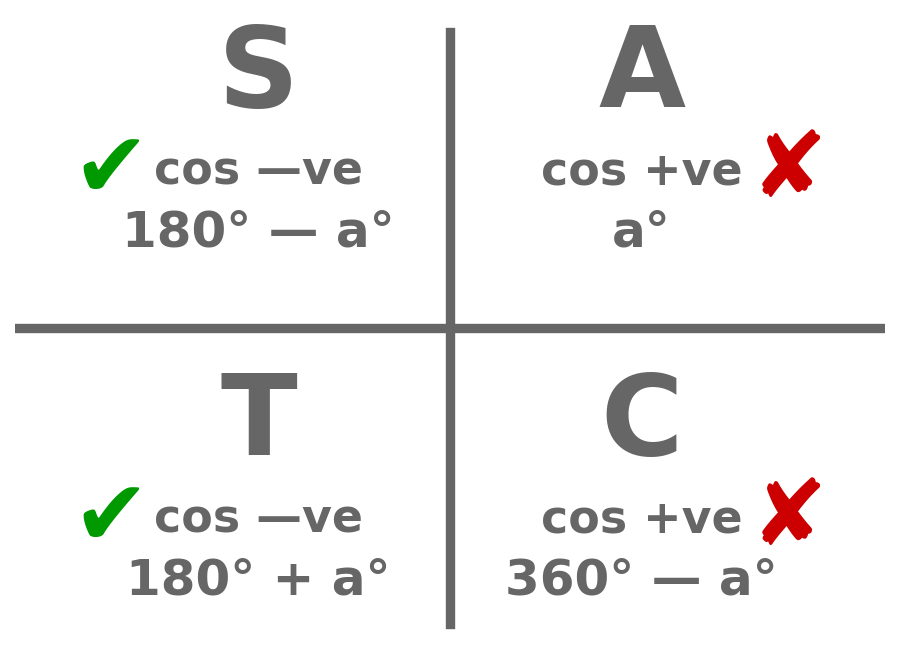

Example 2 (calculator)

Solve the equation \( cos\ x^\circ=-0.5 \), for \(0 \leq x \lt 360.\)

Show solution

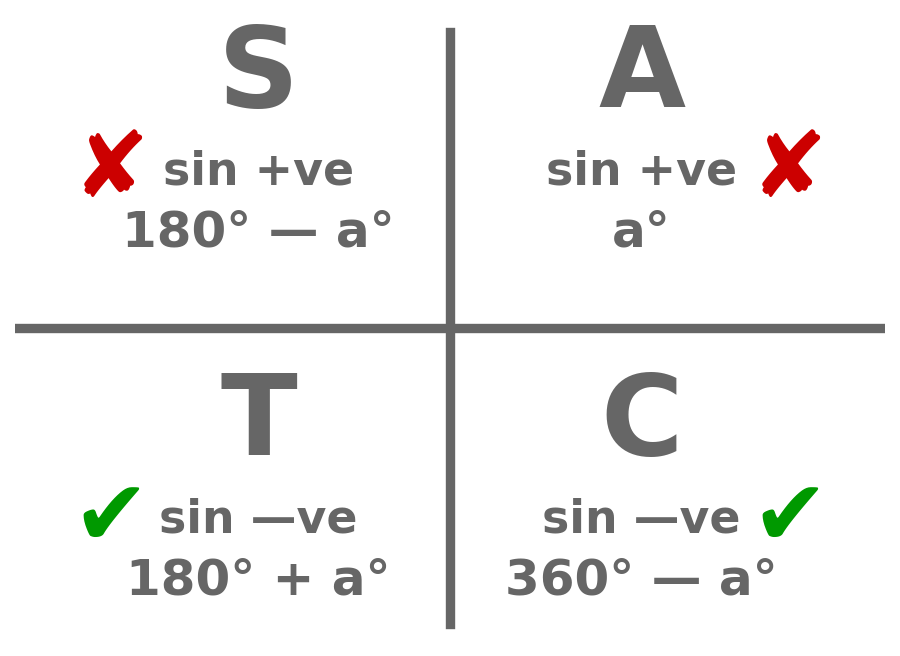

Example 3 (calculator)

Solve the equation \( sin\ x^\circ=-0.4 \), for \(0 \leq x \lt 360.\)

Show solution

Example 4 (calculator)

Solve the equation \( tan\ x^\circ=5 \), for \(0 \leq x \lt 360.\)

Show solution

Example 5 (calculator)

Solve the equation \( 9\tiny\ \normalsize tan\ x^\circ-1=6 \), for \(0 \leq x \lt 360.\)

Show solution

Example 6 (calculator)

Solve the equation \( 3\tiny\ \normalsize sin\ x^\circ+5=4 \), for \(0 \leq x \lt 360.\)

Show solution

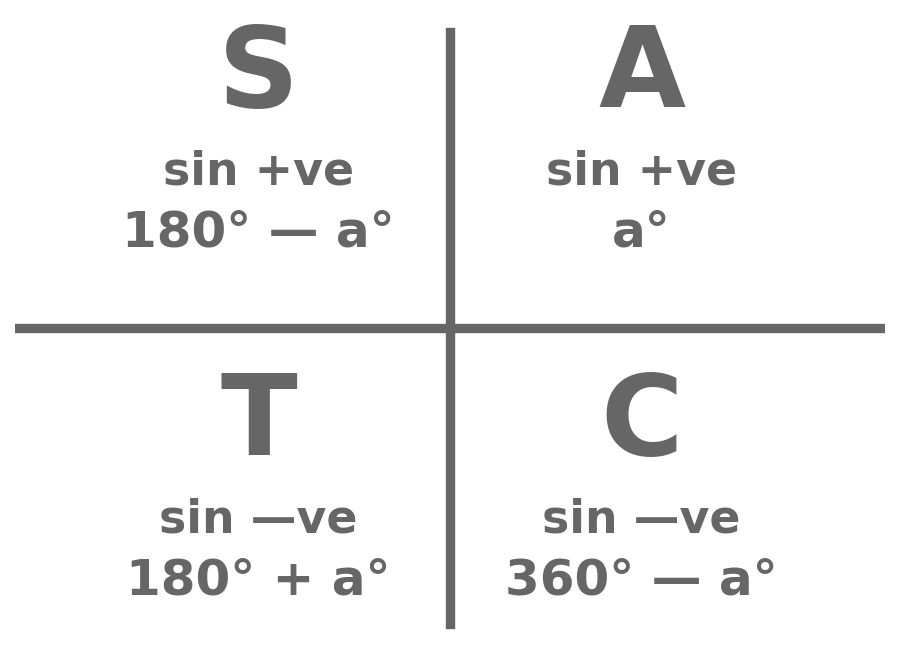

Example 7 (non-calculator)

Write the following in order of size, starting with the smallest.

\(sin\ 200^\circ\)   \(sin\ 160^\circ\)   \(sin\ 180^\circ\)

Justify your answer.

Show solution

Example 8 (calculator)

SQA National 5 Maths 2014 P2 Q12

Solve the equation \( 11\tiny\ \normalsize cos\ x^\circ-2=3 \), for \(0 \leq x \leq 360.\)

Show solution

Example 9 (calculator)

SQA National 5 Maths 2016 P2 Q14

Solve the equation \( 2\tiny\ \normalsize tan\ x^\circ+5=-4 \), for \(0 \leq x \leq 360.\)

Show solution

Example 10 (calculator)

SQA National 5 Maths 2018 P2 Q8

Solve the equation \( 7\tiny\ \normalsize sin\ x^\circ+2=3 \), for \(0 \leq x \lt 360.\)

Show solution

Example 11 (calculator)

SQA National 5 Maths 2019 P2 Q14

Solve the equation \( 5\tiny\ \normalsize cos\ x^\circ+2=1 \), for \(0 \leq x \leq 360.\)

Show solution

Example 12 (calculator)

SQA National 5 Maths 2022 P2 Q9

Solve the equation \( 3\tiny\ \normalsize sin\ x^\circ+4=6 \), for \(0 \leq x \leq 360.\)

Show solution

Example 13 (calculator)

SQA National 5 Maths 2024 P2 Q11

Solve the equation \( 17\tiny\ \normalsize sin\ x^\circ+1=9 \), for \(0 \leq x \lt 360.\)

Show solution
